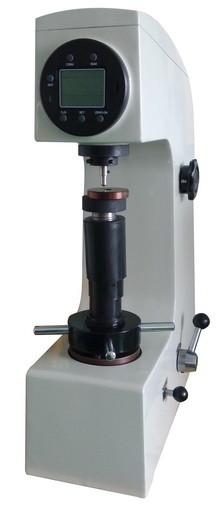

Manual Loading Digital Display Rockwell Hardness Testing Machine with Scales Conversion
Model: HR-150AS
Brief Introduction:
Rockwell hardness test is an empirical indentation hardness test that can provide useful information about metallic materials. This information may correlate to tensile strength, wear resistance, ductility, and other physical characteristics of metallic materials, and may be useful in quality control and selection of materials.
The manual Rockwell hardness tester has stable and reliable performance and is a popular type Rockwell machine.
Mechanical manual test, no power;
Wide application scope, easy operation, good economy and practicality.
Main Functions and Features:
1. Read the hardness value directly through the digital display screen with a resolution of 0.1. The measured result is higher than the national standard;
2, can be directly HV, HB hardness unit conversion;
3, low power consumption, long use, digital display head CR2450 battery power;
4, with time display function;
5, with data output function, can be an external computer or serial micro-printer;
6. The shell is made by a special sandblasting process with a one-step casting process. The structure is stable and not deformed. It can work in a relatively harsh environment. The grade of automobile paint is high, and the scratch resistance is strong. It is still bright as a new product for many years.
7. We have our own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrades for life.
Main Application:
1. Quenched steel, quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.;
Technical Specifications:
| Product name |
Digital Display Manual Rockwell Hardness Tester |
| Model |
HR-150AS |
| Measuring range |
20-88HRA, 20-100HRB,20-70HRC |
| Dial pointer range |
HRA, HRC (black): 0-100; HRB (red): 30-130 |
| Preliminary test force |
10kgf (98.07N) |
| Rockwell test force |
60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N) |
| Hardness indication |
LCD Screen |
| Resolution |
0.1HR |
| Loading control |
manual |
| Max height of specimen |
170mm |
| Instrument throat |
135mm |
| Dimension |
470 x 240 x 630mm |
| Packing dimension |
540 x 420 x 700mm |
| Gross/ Net weight |
65Kg/56Kg |
| Execution standard |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18 |
Standard Delivery:
| Instrument main body |
Ø1.588mm ball indenterl |
Weight A |
| Ø58mm V-shape anvil |
Ø1.588mm Steel ball |
Weight B |
| Hardness block |
Cone diamond indenter |
Weight C |
| Anti-dust cover |
Ø150mm Flat anvil |
Accessory box |
| Warranty card |
Qualified certificate |
Instrument manual |
