Electronic Brinell Hardness Tester with Camera and Computer Software
Model: HBE-3000S
Product description:
Iqualitrol HBE-3000S computer type electronic Brinell hardness tester adopts advanced electronic sensor loading technology. Through the closed-loop control system, the CPU controls the sensor to collect signals.
The stepping motor automatically loads and unloads the test force, and can automatically compensate the test force to ensure the force accuracy.
Equipped with mobile measuring platform and computer measuring system, with high test speed and more measurement functions, equipped with emergency stop device, conform with EU CE safety standards, with more reliable operation and safety.
It is widely used in factory workshops, universities, research institutes, laboratories, etc.
Main features and features:
1. Equipped with precision sensor and CPU microcomputer control system, it can be automatically compensated, and the test result is accurate and stable;
2. With 10 levels of test force, the test range is wider;
3, equipped with a mobile measurement platform and computer measurement system, with high test speed and more measurement functions;
4, equipped with high-performance stepper motor automatic loading and unloading test force, the noise generated during the test process is lightly;
5. The shell is cast iron, the structure is stable and not deformed, and it can work under relatively harsh environment;
6. The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;
7. This machine is equipped with Brinell image measurement software to greatly improve work efficiency.
Technical Specifications:
| Model |
HBE-3000S |
| Brinell scales |
HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test force |
62.5kgf (612.9N), 100kgf (980.7N), 125kgf (1226N), 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (8907N), 1500kgf (14710N), 3000kgf (29420N) |
| Load control |
Automatic (loading/loading/unloading) |
| Maximum height of the test piece |
220mm |
| Length resolution |
0.005mm |
| Dwell |
0~60s |
| Hardness test range |
8~650HBW |
| Total magnification |
20X |
| Executive standards |
EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150 |
| Throat depth |
135mm |
| Indenter-upper wall distance |
55mm (can increase the pressure from the indenter to the upper wall by customizing the indenter) |
| Hardness reading |
Direct measurement by computer software |
| power supply |
AC220+5%, 50~60Hz |
| Dimensions |
520*210*745mm |
| Net weight |
About 120kg |
|
|

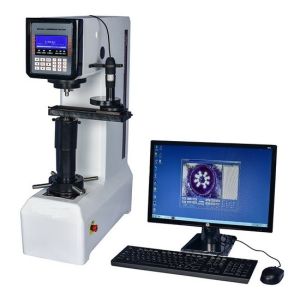

Electronic Brinell Hardness Testing Machine with Camera and Computer Software Images
|
